Parameter Table
|
| A-axis rated/maximum torque | 300/500Nm（water cooled） |
A-axis rated power
| 3.14kW |
| A-axis rated current | 16.5A |
A-axis maximum speed
| 60rpm
|
| A-axis tightening torque | 2000（60bar）Nm |
| Axis A angle range | ±110° |
| A-axis encoder type | absolute |
| A-axis positioning accuracy | 8"VDI3441
|
| A-axis repeated positioning accuracy | 4"VDI3441
|
| C-axis rated/maximum torque | 300/570Nm（water cooled） |
| C-axis rated power | 6.3kW |
C-axis rated current
| 26A
|
| Maximum speed of C-axis | 60rpm |
| C-axis tightening torque | 2000（60bar）Nm |
| C-axis angle range | ±360° |
| C-axis encoder type | absolute
|
C-axis positioning accuracy
| 8"VDI3441
|
C-axis repeated positioning accuracy
| 4"VDI3441
|
| Spindle parameters | 35Nm spindle |
| Spindle parameters | 35/42Nm |
| Rated/maximum spindle speed | 5400/20000rpm |
| Rated power of main shaft | 20kW |
| Rated current of spindle | 43A |
| Knife handle | HSK-A63 |
Bearing lubrication method
| Grease lubrication
|

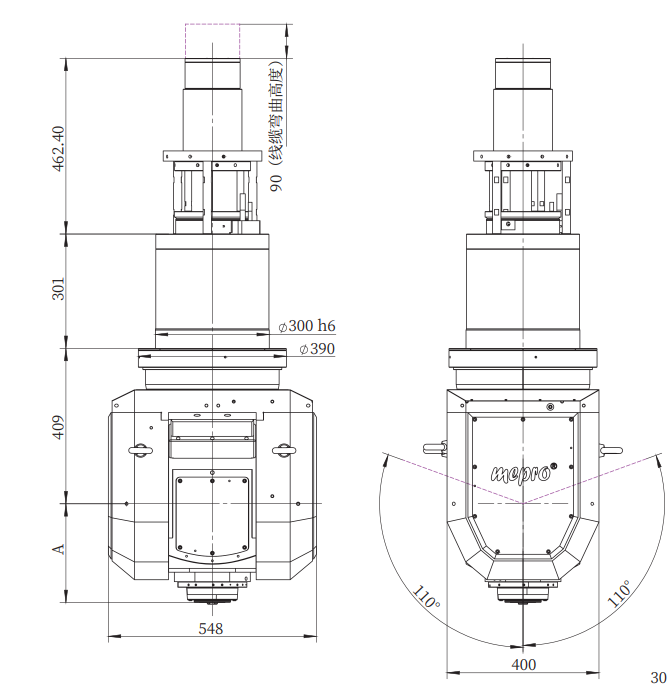

| A | 323.5mm |
Bearing lubrication method
| Grease lubrication |
Total weight
| 610kg |
